محصولات پایش Codel

Data in % opacity, Ringelmann or mg/m3 Data in % opacity, extinction and mg/Nm3 Integral temperature measurement CO, CO2, NO, NO2, SO2, HCL, CH4, H2O Automatic calibration verification facility CO, CO2, NO, NO2, SO2, HCL, CH4 , H2O Suitable for flue gas temperatures up to 650 deg C Monitors dust in mg/m3 or kg/hr along with iso-kinetic testing Suitable for all particulates - accurate sensing method Suitable for hot and dirty gases upto 1000 deg C

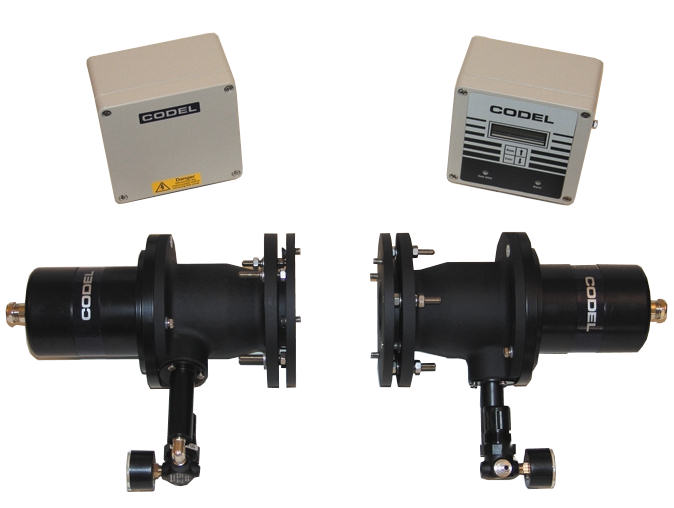

Model D-CEM1000/1001 Opacity Monitor
› simple installation - high reliability - very low maintenance
› proven technology meets legislative requirements
› data in % opacity, mg/m3, mg/Nm3 dust
› lens contamination minimised by high-efficiency air purges

Catalog

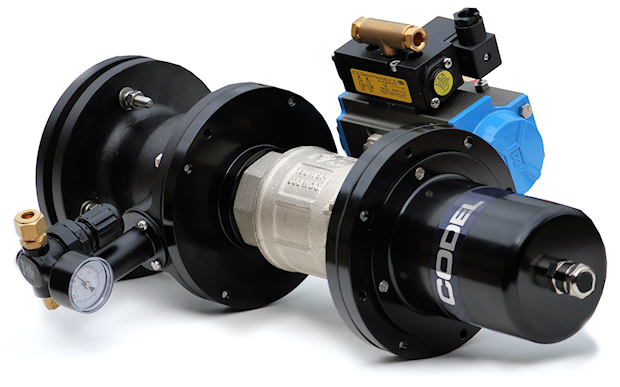

DCEM2000/2100 Opacity/Dust Monitor
In-situ, low maintenance devices for continuous monitoring of opacity/dust emissions
› % opacity or dust density in mg/Nm3
› Dual-pass, open-path transmissometer
› Integral auto zero and span check
› Dynamic misalignment check
› Full contamination check on all active optical surfaces
› Integral high efficiency air curtains for maximum uninterrupted service

Catalog

GCEM 40 Series Gas Analyser CO, NO, NO2, NOx, SO2, CH4, CO2 & H²O
In-situ low cost, low maintenance devices for continuous process and emissions monitoring.
› Single or Multi-species infrared absorption analyser - Accurate, reliable and low maintenance technology
› In-situ stainless steel probe measurement - Single unit install. No sample lines required
› Gas temperature and pressure sensors - On-board normalisation to standard reference conditions
› Auto routine calibration - Zero and span calibration using audit gas
› Analogue and serial outputs - Export of data to SCADA, DCS and historian systems

Catalog

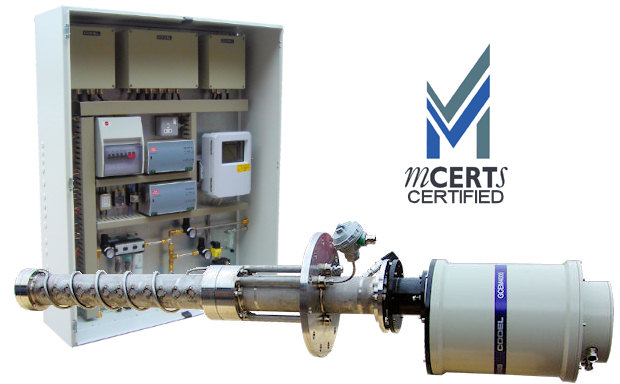

GCEM4000 Gas Analyser CO, NO, NO2, NOx, SO2, CH4, HCl, N2O, CO2 & H2O
In-situ, low maintenance devices for continuous process and emissions monitoring.
› Up to seven gas species
› 0-400 deg C, higher temperatures available
› CO, CO2, NO, NO2, SO2, HCL, CH4, H2O
› Analogue and serial digital output
› ppm, mg/m3 (measured) and mg/Nm3 (normalised)
› Automatic zero and span verification by protocol gases
› Integral temperature / pressure measurement for normalisation
› Over five years data logging via PC software package
› In-situ 316L S/S probe, option of 1.0m or 1.8m length
› MCERTs certified instrument
Catalog

GCEM 40 Series Extractive Gas Analyser CO, NO, NO2, NOx, SO2, CH4, HCl, CO2 & H²O
Extractive low cost, low maintenance devices for continuous process and emissions monitoring.
› Single or Multi-species infrared absorption analyser - Accurate, reliable and low maintenance technology
› Extractive System - With full zero & span verification using certified gas
› Gas temperature and pressure sensors - On-board normalisation to standard reference conditions
› Auto routine calibration - Zero and span calibration using audit gas
› Analogue and serial outputs - Export of data to SCADA, DCS and historian systems

Catalog

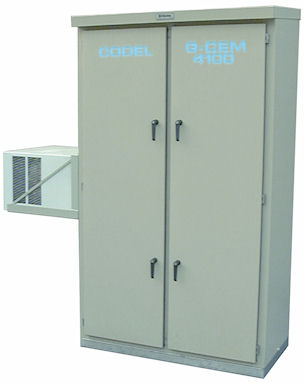

GCEM4100 Extractive Gas Analyser CO, CO2, NO, NO2, SO2, HCL, CH4 & H2O
Hot extractive multi-channel gas analyser for continuous process and emissions monitoring.
› Single or Multi-species infrared absorption analyser
› Integral temperature controlled weather cover
› Integral temperature measurement
› Ambient temperature range available from -20 to +70 deg C
› Wide operating temperature - 400 deg C › Zero and span verification by protocol gases
› In-situ 316L S/S probe, Option of 1.0m, 1.8m or 2.2m length
› Analogue and serial digital output

Catalog

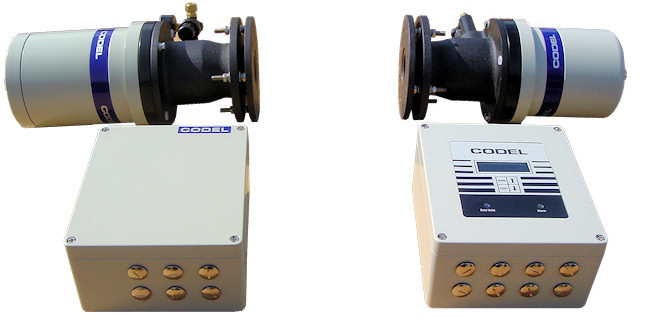

Model 1010 Cross-Duct CO Analyser› Simple installation and operation
With no sampling system to maintain, CODEL cross-duct monitors are easy to install and simple to operate – vital for plant where there may be little or no technical support available.
The CODEL 1010 analyser may be used as a complete stand alone monitor or as part of an integrated emission monitoring, logging and reporting system. The instrument is particularly suited to large/dirty processes.
› highly efficient air purges for minimal lens contamination
› automatic on-line zero calibration using integral reference gas cell
› real-time normalisation to standard reference conditions
› low maintenance - only simple, infrequent
› checks to windows are required
› data presentation in ppm, mg/m3 or mg/Nm3

Catalog

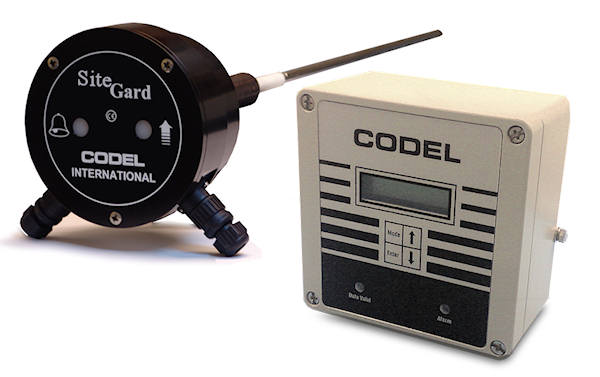

MonoGard Continuous Dust Monitor
SiteGard advanced particulate sensors lie at the very heart of the MonoGard multi-point particulate monitoring system; one MonoGard unit can control up to four SiteGard sensors. The MonoGard unit has a 32-character display and a keypad that allows the operator to programme each SiteGard sensors' alarm and remote data mode.
› Simple installation
› Data logging available - up to 20 months memory
› Expandable - up to four SiteGard sensors
› Range of duct sizes - from 250mm to 2m
› Virtually maintenance-free - low cost of ownership
› Monitors dust in mg/m3 or kg/hr along with iso-kinetic testing

Catalog

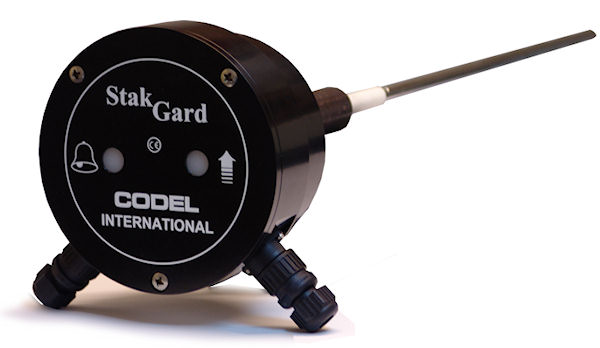

StakGard Continuous Dust Monitor
The Stakgard continuous dust monitor uses the well-proven tribo-electric effect to directly measure mass particulate concentration by sensing the frictional charge created when particles collide with a conductor. The advanced electronics of the StakGard detect this signal and present it to the operator via a unique modulating LED display.
› Simple Installation
› Suitable for all particulates - accurate sensing method
› Robust and Reliable
› Range of duct sizes - from 250mm to 2m
› Virtually maintenance-free - low cost of ownership
› Suitable for virtually all dust collector

Catalog

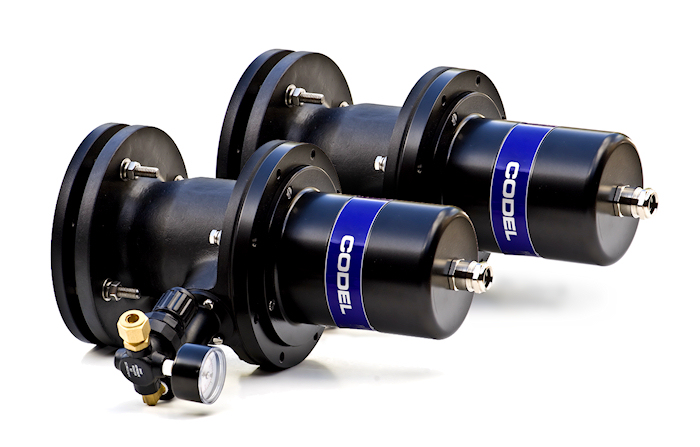

VCEM5000/5100 Flue Gas Flow Monitor
In-situ, low maintenance devices for continuous measurement of hot gas flow
› Non-contact measurement
› No moving components – maintenance free
› Continuous real-time measurement
› Auto low and high span check
› Suitable for hot and dirty gases upto 1000 deg C
› Measurement in m/sec or m3/sec

Catalog
